Decoration
A perfect fusion between speed and high transfer with quality finishes of XTREME aerographic systems.

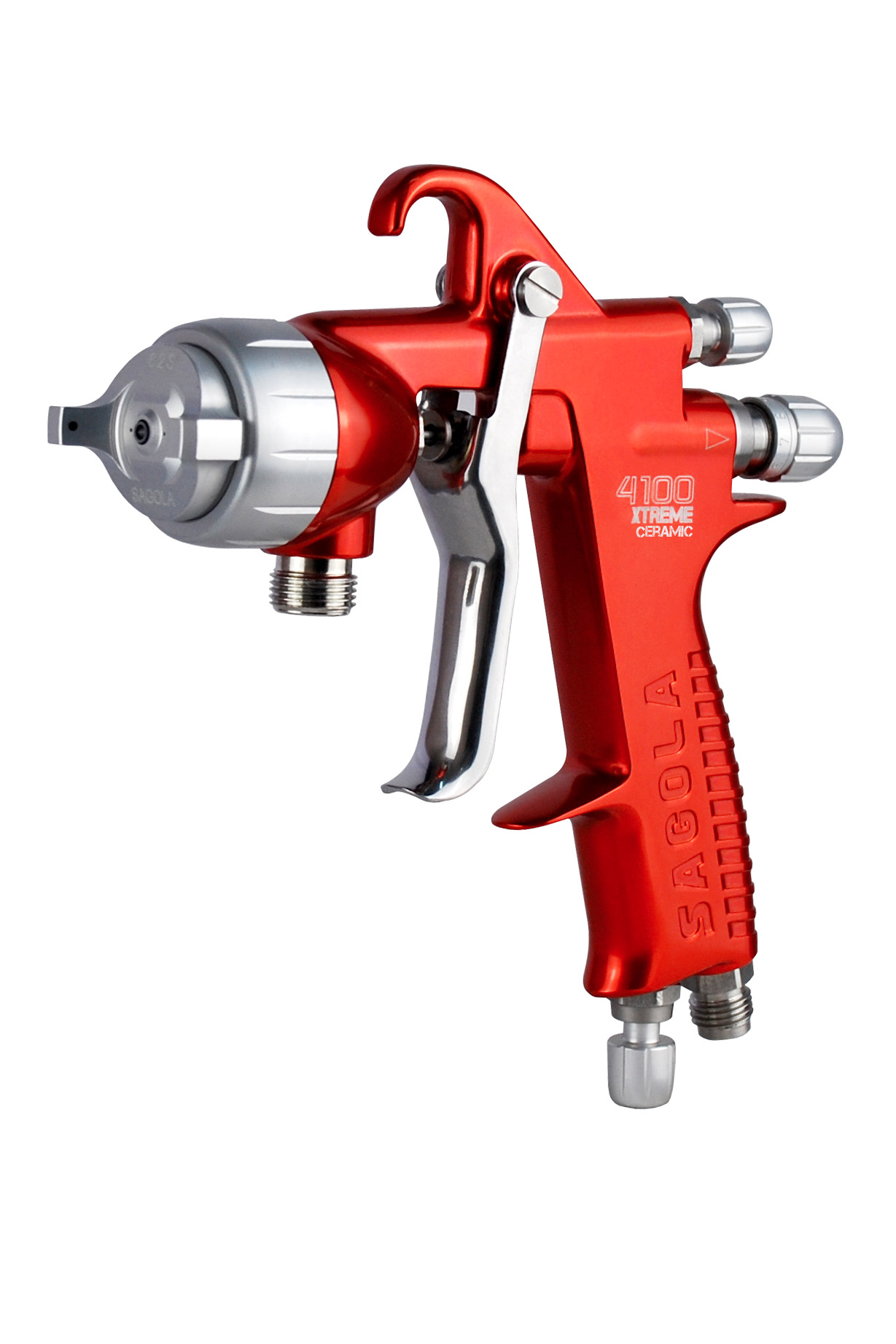

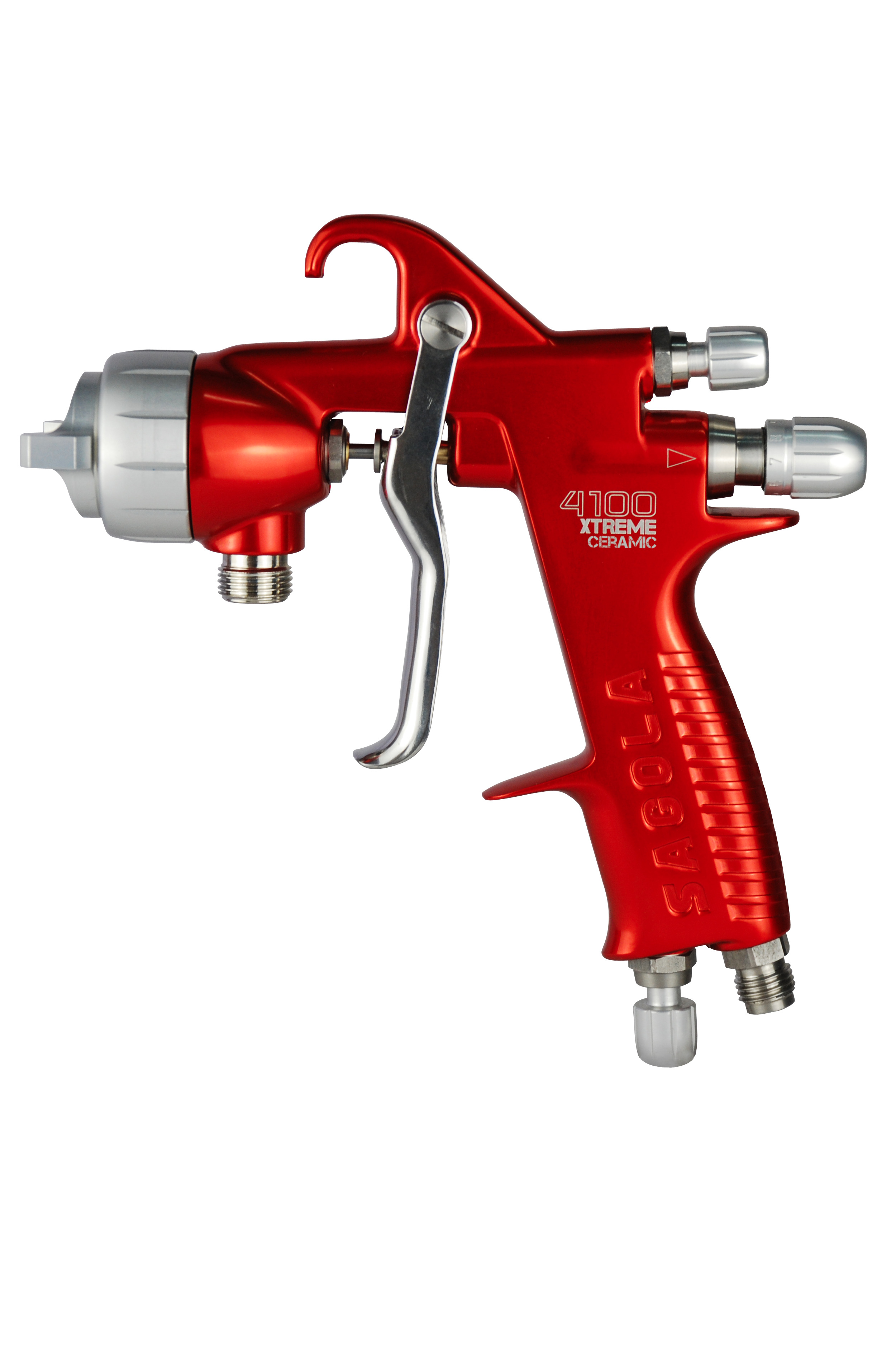

Designed to last over time thanks to its robustness and quality of its components. To this we add its manageability and softness that makes it the ideal pressure spray gun for difficult jobs, de high microns, high-speed application and complicated and highly abrasive products.
In the ceramic applications, we provide the maximum resistance. And in vitroceramic, we can achieve the highest degree of refinement and finishing quality
Applications
Toilettes, Roof tiles, Kitchen equipment, Plates, Tiles, Engobe, Ceramic enamels, Vitrified enamels, Structural anticorrosive treatment, etc.
| Weight | 552g |
| Dimensions | 20 x 19 x 4,2 cm |
| Product inlet | 3/8” M BSP |
| Air inlet | 1/4” M BSP |
| Design pressure | 10 bar |
| Maximum recommended inlet pressure (working pressure) | 4 bar |
| Air consumption Aircap 1.4[78] | 410 L/min |
| Air consumption Aircap 2.5[64] | 410 L/min |
| Air consumption Aircap 2.8[62] | 410 L/min |
| Air consumption Aircap 2.2[64] | 390 L/min |
| Air consumption Aircap 1.8[67] | 400 L/min |
| Air consumption Aircap XT03 | 460 L/min |
| Materials in contact with the product | Stainless Steel, POM, Teflón, Nylon and Tungsten Carbide |
| ATEX | (Ex) II 2 GX |
